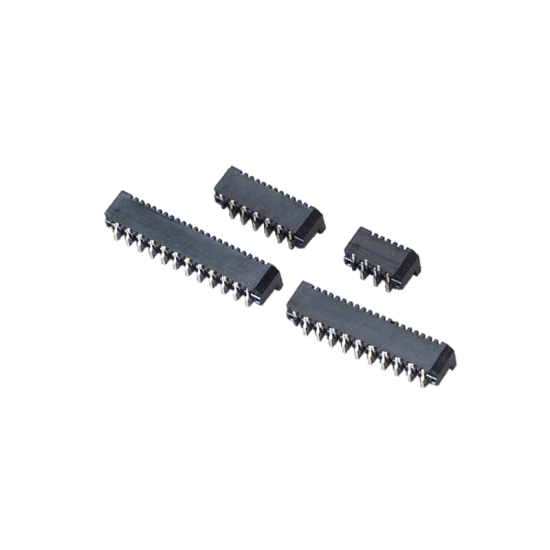

TJC1002 型扁平电缆连接器 Flat Cable Connector

技术参数( SPECIFICATIONS )

适用线缆 (Useable wire range): 厚度 0.3mm 柔性扁平电缆
温度范围 (Temperature range): -25°C~85°C
额定电压 (Voltage rating): 50V AC/DC
额定电流 (Current rating): 0.5A
接触电阻 (Insulation resistance): ≤ 0.03 Ω
绝缘电阻 (Insulation resistance): ≥1000MΩ
耐压 (Withstand voltage): 500V AC/minute
认证 (STANDARDS): E200881
