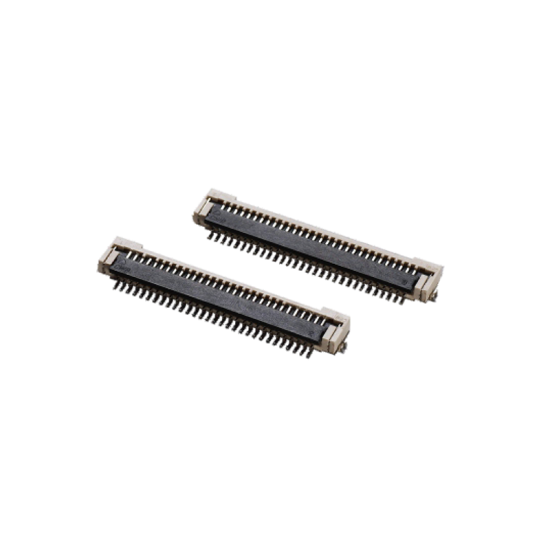

TJC1008 型扁平电缆连接器 Flat Cable Connector

技术参数( SPECIFICATIONS )

温度范围 (Temprature range): -25 °C ~85 °C
额定电压 (Voltage rating): 200V AC/DC
额定电流 (Current rating): 1A AC/DC
接触电阻 (Insulation resistance): ≤ 0.03 Ω
绝缘电阻 (Insulation resistance): ≥ 1000M Ω
耐压 (Withstand voltage): 500V AC/minute
材料 (Material):
针座 Housing: LCP UL 94V-0
锁紧片 Actuator: PA6T UL94V-0
插针 Terminal: 磷青铜 Phos · Bronze Tin · Plated
焊片 Hook: 黄铜 Brass Tin · Plated
