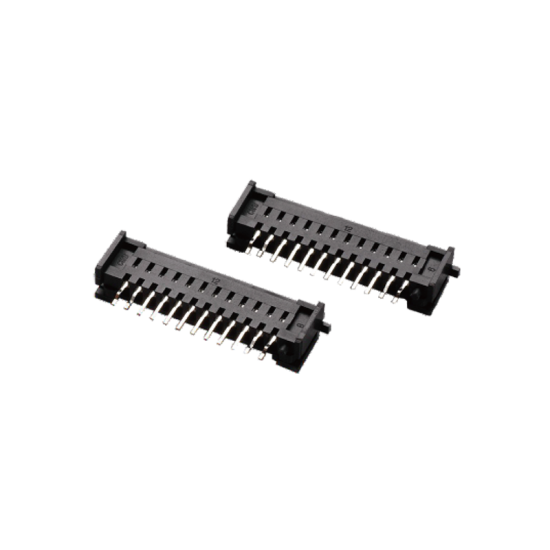

TJC25456 型条形连接器 Flat Cable Connector

技术参数( SPECIFICATIONS )

适应基板厚度 (Applicable PC board thickness): 1.2mm~1.6mm
温度范围 (Temperature range): -25°C~85°C
额定电压 (Voltage rating): 24V AC/DC
额定电流 (Current rating): 0.5A
绝缘电阻 (Insulation resistance): ≥1000MΩ
耐压 (Withstand voltage): 1000V AC/minute
