Wire to Board Connector
10-8…8mm pitch

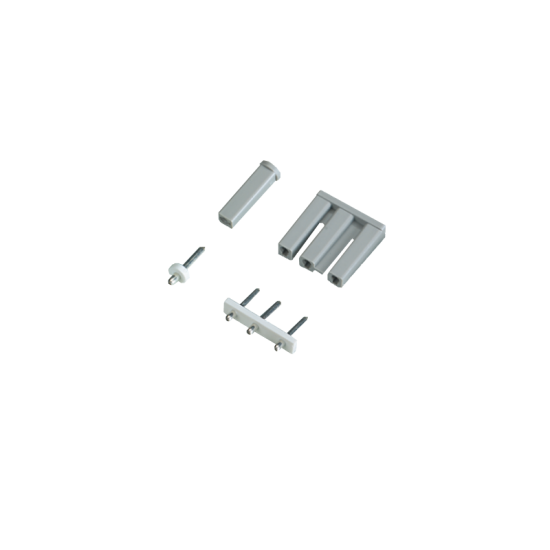

TJC1 型条形连接器 Bar Connector

技术参数( SPECIFICATIONS )

适用线规(Applicable wires):AWG#24~AWG#20
适应基板厚度(Applicable PC board thickness):1.2~1.6 mm
温度范围(Temperature range):-25℃~85℃
额定电压(Voltage rating):250V AC/DC
额定电流(Current rating):3A
接触电阻(Contact resistance):≤0.03Ω
绝缘电阻(Insulation resistance):≥1000MΩ
耐压(Withstand voltage):1000V AC/minute
认证(STANDARDS):UL E200881
