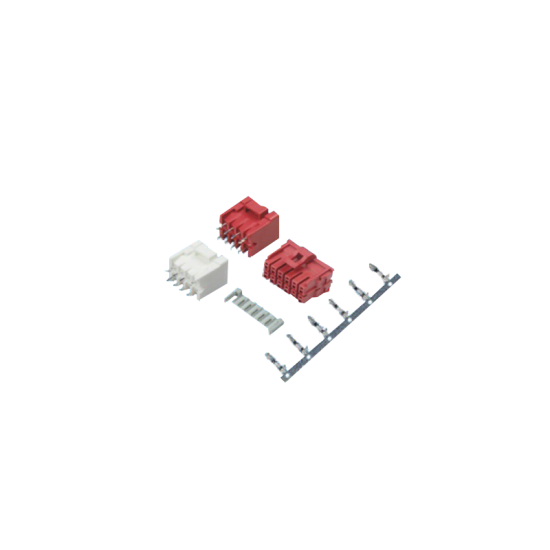

TJC35006 型条形连接器 Bar Connector

技术参数( SPECIFICATIONS )

适用线规 (Applicable wires):
插簧类型: CH-TJC35006-A/B; 芯线截面积mm²: 0.2~0.3; 绝缘皮外经mm: ⊄1.45～⊄2.5
插簧类型: CH-TJC35006-A5/B5; 芯线截面积mm²: 0.5; 绝缘皮外经mm: ⊄1.45～⊄2.5
适应基板厚度 (Applicable PC board thickness): 1.6 mm
温度范围 (Temperature range): -40°C~+105°C
额定电压 (Voltage rating): 5V~250V AC/DC
额定电流 (Current rating): 1mA~5A
接触电阻 (Contact resistance): ≤0.01Ω
绝缘电阻 (Insulation resistance): ≥1000MΩ
耐压 (Withstand voltage): 1500V AC/minute
认证 (STANDARDS): E200881
