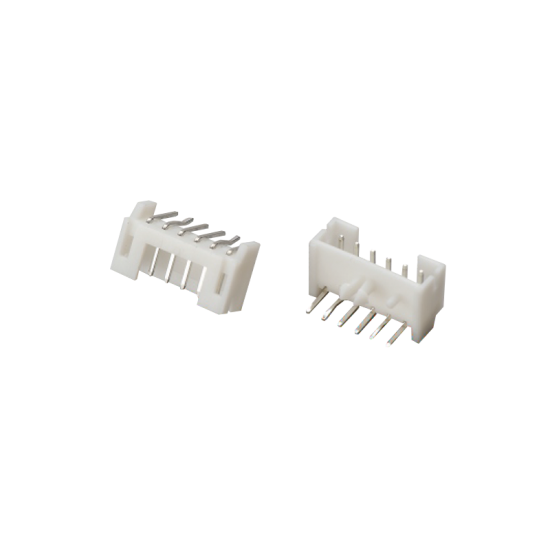

PH 型条形连接器 Bar Connector

技术参数( SPECIFICATIONS )

适用线规 (Applicable wires): AWG28#~AWG22#
温度范围 (Temperature range): -25°C~+85°C
额定电压 (Voltage rating): 250V AC/DC
额定电流 (Current rating): 1.0A (AWG28#)、1.5A (AWG26#) 2.0A (AWG24#)、2.5A (AWG22#)
接触电阻 (Contact resistance): ≤0.01Ω
绝缘电阻 (Insulation resistance): ≥1000MΩ
耐压 (Withstand voltage): 800V AC/minute
认证 (STANDARDS): E200881
