Wire to Board Connector
2.54mm pitch

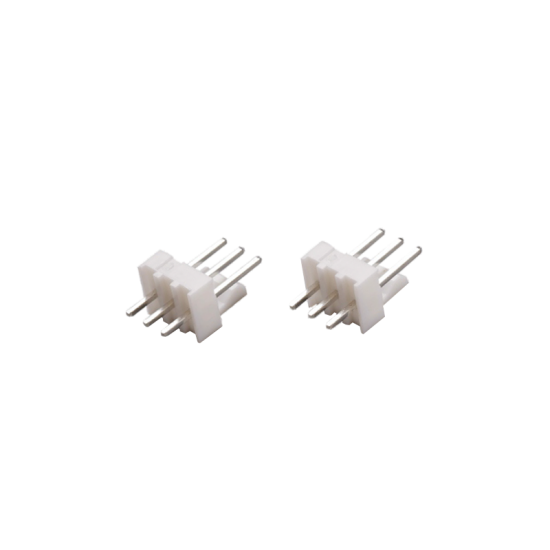

TJC25429 型条形连接器 Bar Connector

技术参数( SPECIFICATIONS )

适应基板厚度(Applicable PC board thickness):1.2~1.6 mm
温度范围(Temperature range):-25℃~85℃
额定电压(Voltage rating):250V AC/DC
额定电流(Current rating):2A
接触电阻(Contact resistance):≤10mΩ
绝缘电阻(Insulation resistance):≥1000MΩ
耐电压(Withstand voltage):800V AC/minute
材料(Material):PA66 UL94V-0;黄铜 镀锡 Brass Tin · Plated
认证(Standards):UL E200881
