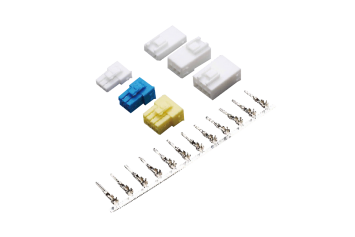

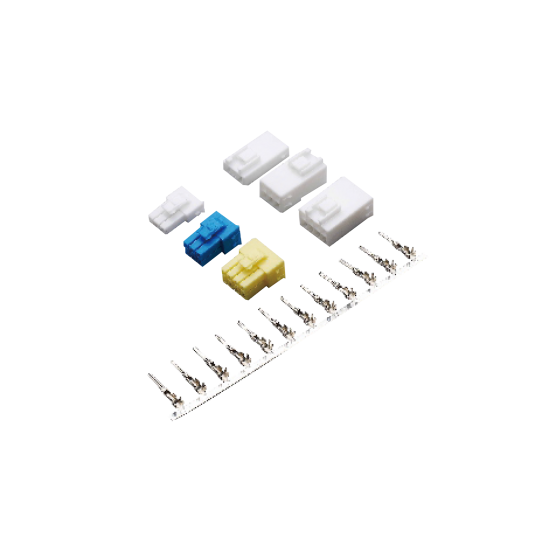

TJC3969 型条形连接器 Bar Connector

技术参数( SPECIFICATIONS )

适用线规 (Applicable wires): AWG20#~16#; AWG26#~22#
温度范围 (Temperature range): -25°C~85°C
额定电压 (Voltage rating): 250V AC/DC
额定电流 (Current rating): 3A
接触电阻 (Contact resistance): ≤0.02Ω
绝缘电阻 (Insulation resistance): ≥1000MΩ
电压 (Withstand voltage): 2200V AC/minute
