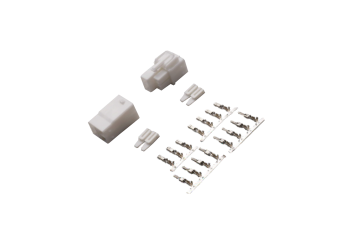

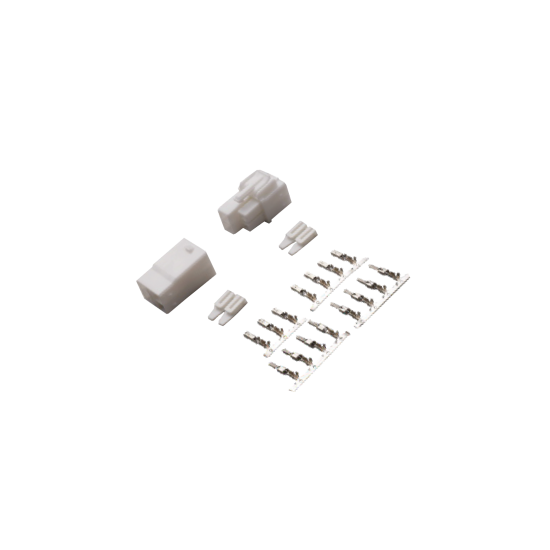

Fl 系列 Series

技术参数( SPECIFICATIONS )

适用线规 (Applicable wires): AWG14#~22#
温度范围 (Temperature range): -25°C~85°C
额定电压 (Voltage rating): 250V AC/DC
额定电流 (Current rating):
AWG24# 3A, AWG22# 4A, AWG20# 5A, AWG18# 7A, AWG16# 10A, AWG14# 15A
接触电阻 (Contact resistance): ≤0.01Ω
绝缘电阻 (Insulation resistance): ≥1000MΩ
耐压 (Withstand voltage): 800V AC/minute
材料 (Material):
Housing: PC/PET UL94V-0 or Pa66 UL94V-0
