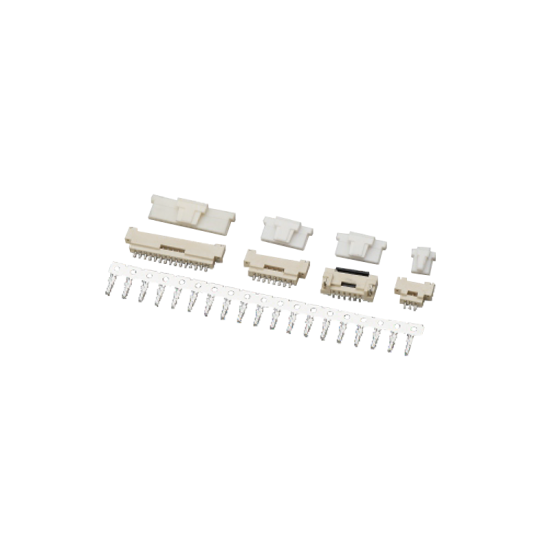

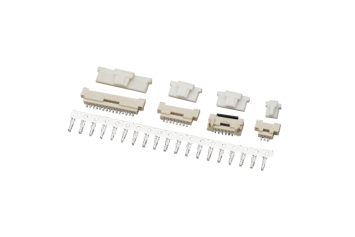

TJC12510 型条形连接器 Bar Connector

技术参数( SPECIFICATIONS )

适用线规 (Applicable wires): AWG32#~AWG26#
适应基板厚度 (Applicable PC board thickness): 0.8~1.6 mm
温度范围 (Temperature range): -25°C~+85°C
额定电压 (Voltage rating): 125V AC/DC
额定电流 (Current rating): 1A
接触电阻 (Contact resistance): ≤0.03Ω
绝缘电阻 (Insulation resistance): ≥100MΩ
耐压 (Withstand voltage): 250V AC/minute
认证 (STANDARDS): E200881
