Wire to Board Connector
2.5mm pitch

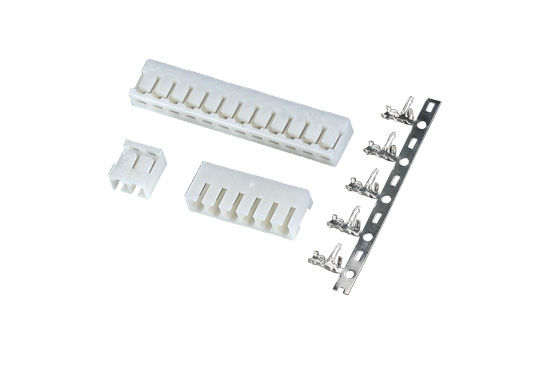

SCN-nAW 型条形连接器 Bar Connector

技术参数( SPECIFICATIONS )

技术参数(SPECIFICATIONS)
适用线规(Applicable wires):AWG#26~AWG#24
适应基板厚度(Applicable PC board thickness):1.2~1.6 mm
温度范围(Temperature range):-25℃~85℃
额定电压(Voltage rating):250V AC/DC
额定电流(Current rating):2A
绝缘电阻(Insulation resistance):≥1000MΩ
耐压(Withstand voltage):1000V AC/minute
认证(STANDARDS):UL E200881
