Wire to Board Connector
1.25mm pitch

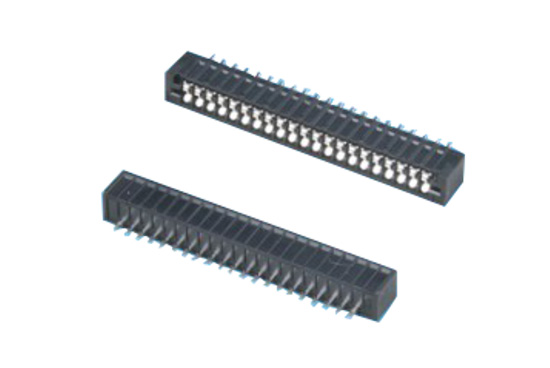

Ry04 型条形连接器 Bar Connector

技术参数( SPECIFICATIONS )

适用线缆(Useable wire range):FPC/FFC T=0.3±0.05mm 1.25P
适应基板厚度(Applicable PC board thickness):1.1 mm
温度范围(Temperature range):-40℃~85℃
额定电压(Voltage rating):24V AC/DC
额定电流(Current rating):1A
接触电阻(Contact resistance):≤0.025Ω
绝缘电阻(Insulation resistance):≥100MΩ
耐压(Withstand voltage):500V AC/minute
认证(STANDARDS):UL E200881
